USB 2.0 Cat5 Extender

Model No:UE-201
UE-201 can help remove the distance barrier between your PC and any USB 2.0 peripheral devices which are located at a distance exceeding up to 50 meters away。By using technology of Cat.5 / 5e / 6 cable,distance is no longer a problem to hinder the inter-workability in your computing communication world。
  • Features & Spec.

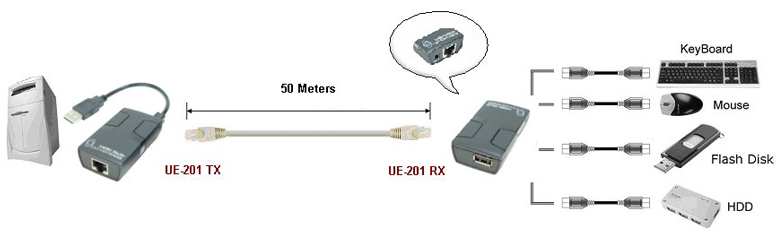

  • Diagram

Features

  • Through Cat5/6 UTP or FTP cable to extend USB 2.0 peripherals devices up to 164ft
  • Ideal for multi-touch monitors , whiteboards , webcams etc usage.
  • Fully compliant with USB 2.0 & 1.1 specification
  • Low cost and high performance Cat.5 / 5e / 6 network cable applied
  • Embedded USB transceivers in both Master and Remote units to secure the transmitting quality
  • One LED on each end to indicate the extender is power on
  • External power supply
  • No driver installation is required

Specifications

Model no. UE-201
Interface Local Device Upstream 1 x USB Type A male,  with 0.5ft cable
Downstream 1 x RJ-45 female
Remote Device Upstream 1 x USB Type A female
Downstream 1 x RJ-45 female
Built-in Cable ( Local Device ) 0.5 ft
Cable tyep Cat5/5e/6  UTP/STP/FTP
Cable Length max. 164ft
Power Supply DC5V 1.0A
Size 66*39*20mm
