HDMI to VGA /Component Converter

Model No:VC-100HVY
The VC-100HVY converts HDMI to a VGA or component output plus stereo audio. It enables an HDMI source to connect to a PC monitor, Projector or TV. Its high bandwidth capability supports a wide range of PC monitor and HDTV resolutions up to 1920 X 1080 or 1080p. The converter is also capable of de-embedding audio from the HDMI source and converting it to a stereo audio interface.
  • Features & Spec.

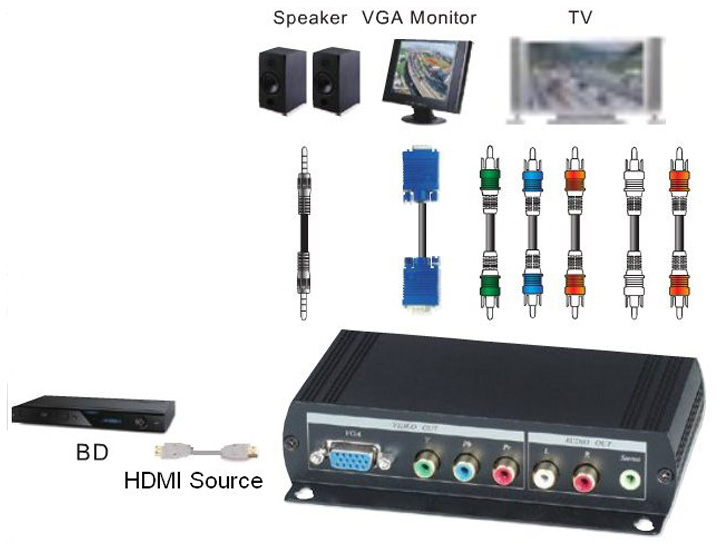

  • Diagram

Features

  • Supports HDMI input and VGA or component with stereo audio output
  • Allows user to select between VGA or component video output ( by button switch )
  • Supports VGA resolutions up to 1920x1200 or component video up to 1080p
  • Supports 2 channel audio output (RCA:White (L),Red (R)、Stereo Phone Jack 3.5mm)
  • Built in auto memory function
  • On screen display function
  • HDMI and DVI compliant

Specifications

Model no. VC-100HVY
Input Interface HDMI x 1
VGA Output 1*VGA (75Ω 0.7 Vp-p)
 YPbPr Output 3* RCA ( Y 75Ω 0.7 Vp-p, Pb 75Ω 0.3Vp-p, Pr 75Ω 0.3Vp-p)
Audio Output 1* Stereo Phone Jack 3.5mm 、 2* RCA
1Vp-p Max.10KΩ
VGA Resolution 640x480p@60, 800x600@60, 1024x768@60,1280x 720@60,
1280x768@60,1280x1024@60,1680 x 1050@60,1920 x 1080@60, 1920 x 1200@60
YPbPr Resolution 720x480i@60(16:9),720x480i@60(4:3),720x576i@50(16:9), 720x576i@50(4:3),720x480p@60(16:9),720x480p@60(4:3),720x576p@50(16:9),
720x576p@50(4:3),1280x720p@50,1280x720p@60,1920x1080i@50,1920x1080i@60,
1920 x 1080p@50、1920 x 1080p@60
Power Source DC 5V 2A
Environment Working Temperature:0~55℃,Storage Temperature:-20~85℃,Humidity:up to 95%
Size 140 x 95 x 32mm
