Industrial LCD Monitor

Model No:RMV-6700
PANEL-MOUNT TFT LCD monitor available in 6.4",8.4",10.4",12.1",15",17",19",20",32",37",42" TFT LCD Monitor
  • Features & Spec.

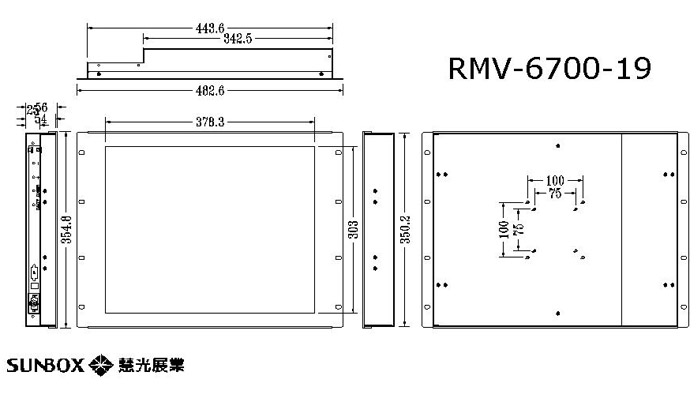

  • Diagram

Features

  • PANEL-MOUNT TFT LCD monitor (Analog VGA input. HDB-15)
  • Heavy-duty steel electroplated for chassis
  • Available in 6.4",8.4",10.4",12.1",15",17",19",20",32",37",42" TFT LCD Monitor
  • Resolution  from 640x480 to 1600x1200
  • 8 Languages on Screen Display Function (OSD)
  • Touch Screen Optional (USB/RS232  interface)
  • Aluminum front Panel (IP 65 Optional)
  • Power Supply
  • 12V DC input( includes universal 100~240V AC input,12V DC output power adapter)
  • Color available in black. (Colors available for OEM)

Specifications

Model no. Display size Active Area Resolution Brightness Contrast Ratio Colors Max. Size/ WHD mm
RMV-6700-6 6.4" 129.6x97.44 640x480 300 120:1 262.144 250x180x53
RMV-6700-8C 8.4" 170.4x127.8 800x600 400(LED) 600:1 262.144 250x180x53
RMV-6700-10A 10.4" 211.2x158.4 800x600 400 500:1 262.144 330x200x50
RMV-6700-10B 10.4" 211.2x158.4 800x600 230 500:1 262.144 330x200x50
RMV-6700-12A 12.1" 246x184.5 800x600 340 300:1 262.144 340x260x50
RMV-6700-12B 12.1" 246x184.5 800x600 250 250:1 262.144 340x260x50
RMV-6700-12C 12.1" 246x184.5 1024x768 500 700:1 262.144 340x260x50
RMV-6700-15B 15" 304.1x228.1 1024x768 250 600:1 16.2M 402x302x53
RMV-6700-15D 15" 304.1x228.1 1024x768 500 400:1 262.144 402x302x53
RMV-6700-17A 17" 337.9x270.3 1280x1024 300 500:1 16.2M 450x360x51
RMV-6700-19 19" 376.3x301.1 1280x1024 300 700:1 16.2M 475x380x55
RMV-6700-20A 20.1" 408x306 1600x1200 250 700:1 16.7M 500x400x70
RMV-6700-20B 20.1" 408x306 1400x1050 300 650:1 16.2M 500x400x70
RMV-6700-32 31.5" 708.95x398.59 1366x768 550 1000:1 16.7M 860x500x100
RMV-6700-37 37" 820.8x461.7 1366x768 600 1000:1 16.7M 980x640x100
RMV-6700-42 42" 930.24x523.26 1366x768 600 1000:1 16.7M 980x640x100
