Products> Video Products > AV Converter

VGA to HDMI Converter

Model No:VC-100VH
Convert any VGA with audio into perfect HDMI video signal with integrated audio。This converter includes a scaling capability that will fit numerous VGA and Component Video resolutions to your HDMI TV
  • Features & Spec.

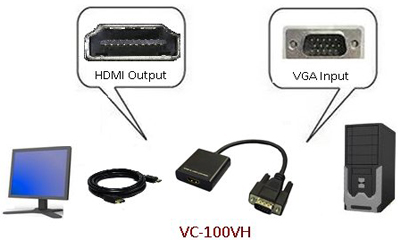

  • Diagram
  • Packages

Features

  • Convert VGA  signal to HDMI output
  • Supports PC resolution up to 1920*1080 @60Hz
  • Easy to install , Plug & Play
  • Need DC 5V Power
  • With 15cm VGA  cable
  • VGA With screw hall / easy fasten


Specifications

Spec. VC-100VH
Input Port 1*VGA HDB-15 male
Output Port 1* HDMI 19pin female
Resolution 1920x1080 max.
Bandwidth 1.65Gps
HDMI ver. HDMI 1.2
Material Plastic
Size 46L x 48W x 15H mm
Power Required DC5V / 0.5A



  1. VC-100VH
  2.  1.8m USB/PS2 Power Cable x1
