USB to RS232 Converter

Model No:USC-232F
The USC-232F provides an extra connection for RS-232 devices via any available USB port from any PC or Laptop Computers。 It is compact,portable,and perfect for users who are always working with serial devices like PDA, Digital Camera,Modem, Cellular Phone,ISDN Terminal Adaptor,and etc.。 Supports Win 10 O/S
  • Features & Spec.

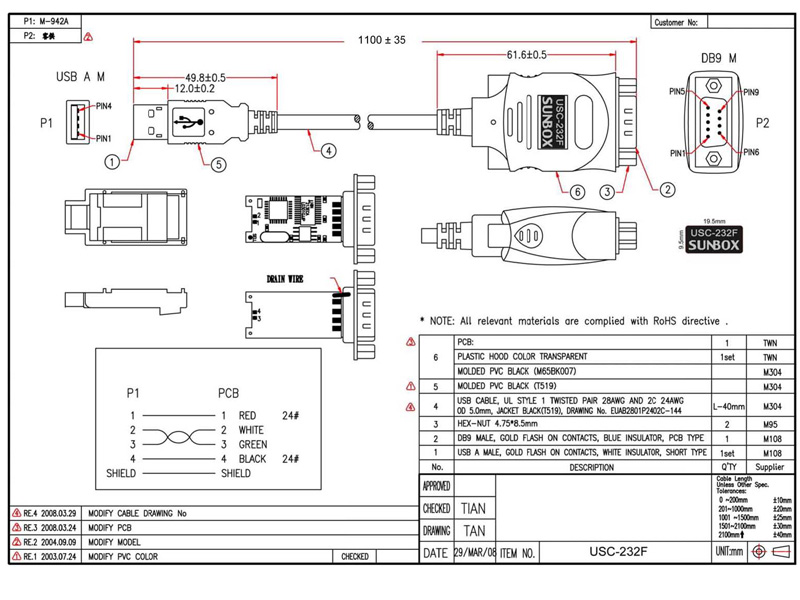

  • Diagram
  • PDF

Features

  • One port USB to RS232 converter
  • Fully compliant with USB1.1 and compatible with USB 2.0 & 3.0 (12Mbps max.) specification
  • Built in FTDI  FT232BL chipset
  • Provides one (1) DB-9 Male Serial Port for Device Connection
  • Fully supports the standard RS-232C spec.
  • Supports Data Transfer Rate of 230kbps
  • Supports Remote Wake-Up and Power Management
  • Supports Hot-Swapping for a Quick Switch in Serial Devices without Shutting Down your PC
  • Supports Bus Powered Mode
  • Approved by Windows Hardware Quality Labs ( WHQL)
  • Supports Win98SE、2000、2003、2008(32 & 64 bit) 、WinCE、XP、Vista、Win7(32 & 64 bit)、Win8(32 & 64 bit)、Win10、Linux  & MacOS8.6 or higher
  • Supports Windows embedded  (by win 8 driver),
    Includes Windows Embedded Compact、Windows Embedded Enterprise、Windows Embedded Standard and Windows Embedded POSReady

Specifications

Model no. USC-232F
Chips FTDI
USB Compliant USB1.1 spec.
USB1.1 Speed 12Mbps max.
RS232 Speed 460Kbps max.
LEDs TX,RX,Power
Connectors        Upstream USB A- Male
Device DB-9 Male
Power Mode Bus
Power Consumption Stand By mode - DC 5V / 54 mA
Working mode- DC 5V / 56 mA
Power Range - 4.35~5.25V
Weight 75g (without package)
Cable 3.3 feet (100cm)
