DVI Repeater
Model No：VDR-050
DVI Repeater regenerates the DVI source signal and extends the length of DVI transmission over a copper based DVI cable by 50 meters
- Features & Spec.

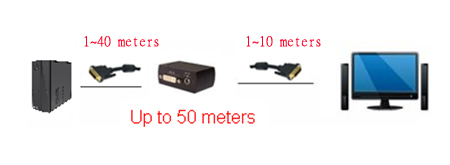

- Diagram
Features
- Regenerates the incoming DVI-D signal by decoding and re-encoding it to a new standard DVI signal so it can extend the transmission range without degradation
- Compatible with HDTV video formats of 480i/p, 720p, 1080i/p
- Compatible with monitor graphic formats of VGA, SVGA, XGA, SXGA, UXGA (1920 X 1200 @60Hz)
- Compliant with HDMI 1.3, HDCP 1.1 and DVI 1.0
- Fully Automatic Equalization Up to 40dB at 825MHz (1.65Gbps), No System Control Required
- Plug and play, easy to install
Specifications
| Model no. |
VDR-050
|
| Interface |
DVI-I 29 female to DVI-I 29 female
|
| Chipset | MAXIM |
| Graphic Standards | 1080i/p & UXGA |
| VGA Resolution | 225MHz@ 60Hz |
| Signal Transmission | 50 meters /max. |
| DVI Cable Spec. | #24AWG |
| Power Source | DC5V, 1A |
| Size | 67 x 54 x 27 mm |
